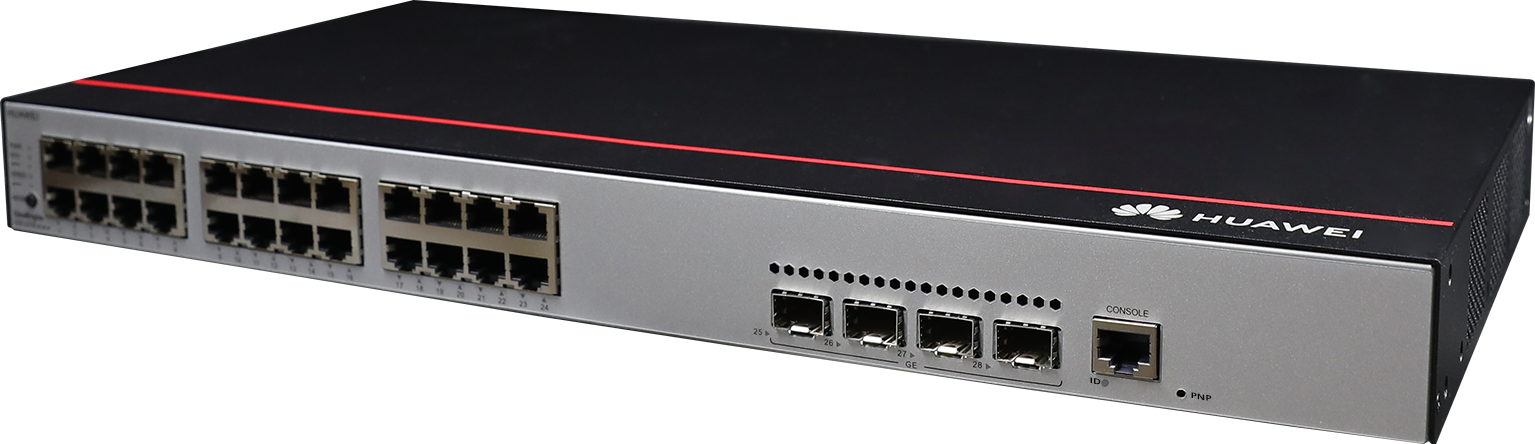

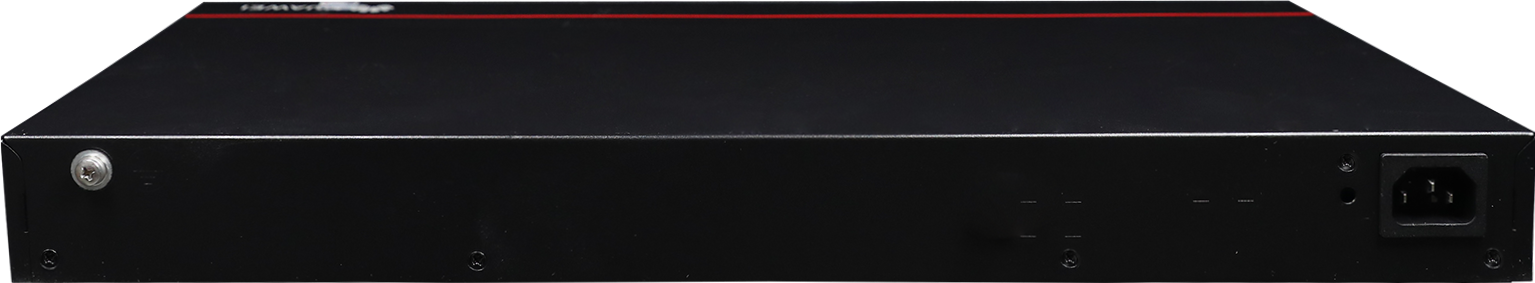

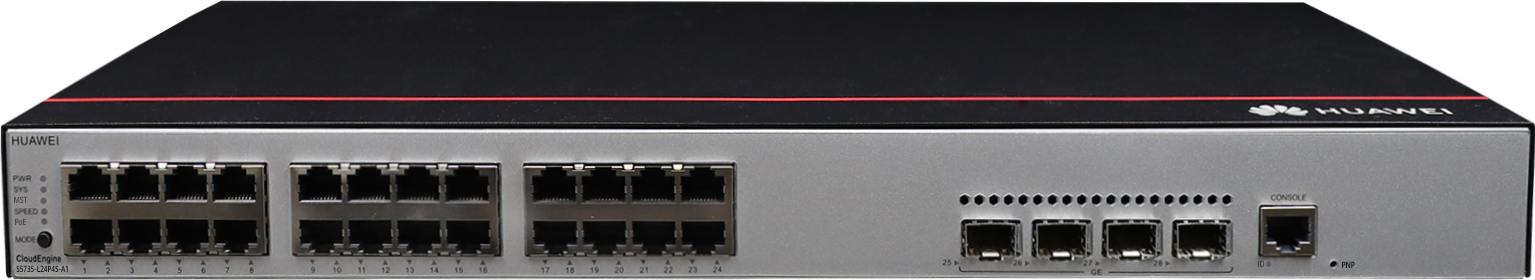

SWITCH HUAWEI S5735-L24P4S-A1 24P GB, 4P SFP, POE+, RACKABIL, L2+
SWITCH HUAWEI S5735-L24P4S-A1 24P GB, 4P SFP, POE+, RACKABIL, L2+ - imagine 3
SWITCH HUAWEI S5735-L24P4S-A1 24P GB, 4P SFP, POE+, RACKABIL, L2+ - imagine 4
SWITCH HUAWEI S5735-L24P4S-A1 24P GB, 4P SFP, POE+, RACKABIL, L2+ - imagine 5

SWITCH HUAWEI S5735-L24P4S-A1 24P GB, 4P SFP, POE+, RACKABIL, L2+

SKU: HU98011321AS
Producator: Huawei
Adaugă la lista de dorinţe
Compare
Disponibilitate:

13 în stoc

3,089.99 lei

13 în stoc

Adaugă la lista de dorinţe
Compare
Wide [mm] 442.0 mm
Depth [mm] 220.0 mm
Height [mm] 43.6 mm
Chassis height [U] 1
Weight with packaing [kg(lb)]g 3.91 kg (8.62 lb)
Weight without packaging [kg(lb)] 2.94 kg (6.48 lb)
Typical power consumption [W] 41.7
Maximum power consumption [W] – Not providing the PoE function: 53.2 W
  – 100% PoE loads: 433.2 W (PoE: 380 W)
Typical heat dissipation [BTU/hour] 142.29
Maximum heat dissipation [BTU/hour] – Not providing the PoE function: 181.52
  – 100% PoE loads: 1478.12
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Power supply mode AC built-in
Rated input voltage [V] – AC input: 100 V AC to 240 V AC, 50/60 Hz
  – High-Voltage DC input: 240 V DC
Input voltage range [V] – AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
  – High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 6:00 AM
Number of card slots 0
Number of power slots 0
Memory 512 MB
Flash memory 512 MB
Redundant power supply Not supported
Types of fans Built-in
Noise at normal temperature (acoustic pressure) [dB(A)] 38.2
Noise at normal temperature (acoustic power) [dB(A)] 50
Airflow direction Air intake from left and front, air exhaustion from right
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
MTBF [year] 55.72
MTTR [hour] 2
Availability >0.99999
Maximum number of physical ports on the entire device 28
Maximum number of 100GE ports 0
Maximum number of 40GE ports 0
Maximum number of 25GE ports 0
Maximum number of 10GE ports 0
Maximum number of GE ports 28
Maximum number of FE ports 28
1000M electrical interface 24
1000M optical interface 4
USB Not supported
Console port RJ45
Eth Management port Not supported
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
RPS input Not supported
PoE Supported
PoE power supply Supported
SKU: HU98011321AS Categorie:
Numar porturi

24
Proprietati

Layer 2
Management

Managed
PoE

Da
Montare in rack

Da
Redundant PSU

Da
Stacabil

Da
Numar porturi RJ-45

1 – 8
Numar porturi SFP

2 – 4
Viteza transfer

10/100/1000 Mbps
LAN port type

Gigabit
Producator

HUAWEI
Garantie

12
