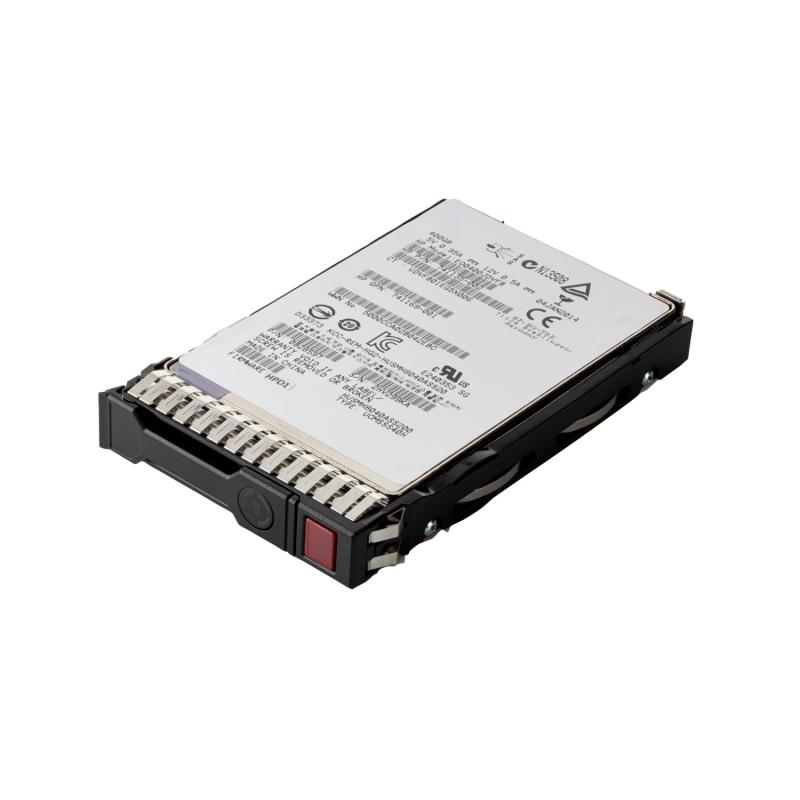

HPE 960GB SATA 6G Mixed Use SFF SC 5300M SSD

Lifecycle

• Obsolete Date 24-11-2021
• End of support date 31-10-2026

Specifications

• Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage
• Weight 0.68 kg
• Product dimensions (imperial) 8.63 x 9 x 5.75 in
• Product dimensions (metric) 21.92 x 22.86 x 14.61 cm
• Weight 1.508 lb
• Lifetime writes 8,760
• Plug type Hot Pluggable
• Power (Watts) 2.97
• Endurance DWPD (Drive Writes Per Day) 5
• Platform supported Mainstream Compute Platforms
• Height 7 mm
• Write IOPS Random Write IOPS (4KiB, Q=16) 52,000 Max Random Write IOPS (4KiB) 52,000@Q4
• Read IOPS Random Read IOPS (4KiB, Q=16)=67,000 Max Random Read IOPS (4KiB)=76,000@Q256

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

Overview

Do you need to accelerate the performance and deliver enterprise features at an affordable price? HPE SATA Mixed Use (MU) Solid State Drives (SSD) deliver enterprise features at an affordable price. HPE SATA MU SSDs are engineered for greater performance and endurance for applications requiring a more balanced mix of high random read and write IOPS performance such as database, virtualization, cloud computing and transactional applications. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge to determine if any drives are at risk of failure.

What’s new

• HPE 1.92 TB SATA 6G Mixed Use SFF (2.5-inch) BC Self-Encrypting 5400M SSD

Features

Hewlett Packard Enterprise Solid State Drives are rigorously tested 3.35 million hours in various environments to achieve the quality standards you need.

HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs.

Support 6 Gb/s SATA
High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

HPE SATA Mixed Use Solid State Drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.

Achieve higher IOPS to enhance the performance of your data center.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

Documents

• HPE Solid State Disk Drives

[1] HPE Internal lab testing. 3.35 million hour test quant is derived from a combination of drive qualification test plans, specifically HDDQ spec-supplier responsibility to perform, HDDQ spec-HPE responsibility to perform, RDT-Reliability Demonstration Test (RDT) spec, CSI integration test spec and pilot test requirements.
