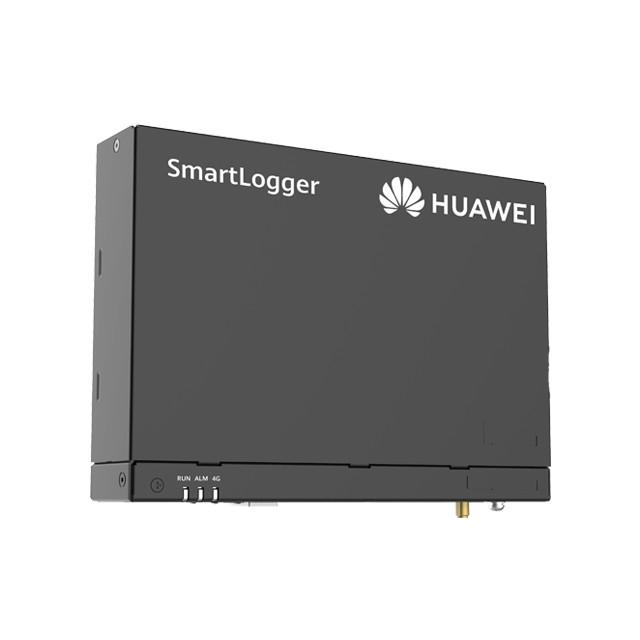

Smart Logger Huawei 3000A03EU (with MBUS), WLAN, 4G, RS485, can

Huawei SmartLogger 3000A03EU – included in delivery

Mains cable 230V
Mains adapter 12VDC + bracket
Patch cable
4G antenna
Connector for DI/AI/DO contacts
Connector for RS485
Connector for MBUS

Huawei SmartLogger 3000A03EU – General Data

Operating temperature range: -40 ~ +60 °C
Relative humidity: 5 % RH~ 95 % RH
Operating altitude: max. 4,000 m
Power consumption: Typically 8 W, Max. 15 W
Display: 3 x LED’s
Communication: RS485, MBUS, Ethernet, 2G/3G/4G
Weight: 2 Kg
Dimensions (without mounting brackets and antenna) :
225 x 160 x 44 mm
Protection class: IP20

Huawei SmartLogger 3000A03EU – Communication Interfaces

WAN: 1 x WAN 10 / 100 / 1.000 Mbps
LAN: 1 x LAN 10 / 100 / 1.000 Mbps
RS485: 3 x COM 1200 / 2400 / 4800 / 9600 / 19200 / 115200 bps, 1000 m
MBUS: AC-MBUS 115.2kbps, compatible with PLC
LTE(FDD)：B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS： 850/900/1900/2100 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz 2
Digital / Analog Input / Output: 4 x DI, 2 x DO, 4 x AI
Active DO: 12V, 100mA (connection with relay, sensor).

Huawei SmartLogger 3000A03EU – Communication Protocol

Ethernet: Modbus TCP, IEC 60870-5-104
RS485: Modbus RTU, IEC 60870-5-103 (standard), DL / T645
